Turbosmart TS-2 6262 Internally Wastegated Watercooled Turbo w/ V-Band Inlet, V-Band Outlet, 0.82AR Hotside Today Only

Description

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines – While being smaller, lighter and faster in response than other solutions on the market.

The TS-2 series are water and oil cooled turbochargers with lightweight investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability. The ultra-low rotating mass of Turbosmarts unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings as well as water feed and return fittings are included.

Features:

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminium compressor covers
• CFD driven designed housings for optimal A/R’s and flow
• 713C Inconel turbine wheel for extreme EGT’s
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on the center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 62mm
• Turbine Inlet: V-Band (2.25″)
• Turbine Exducer: 62mm
• Turbine AR: 0.82
• Turbine Outlet: V-Band (3.00″)
• Weight: 6.06kg / 13.3lbs
• Horsepower Rating: 760-880HP

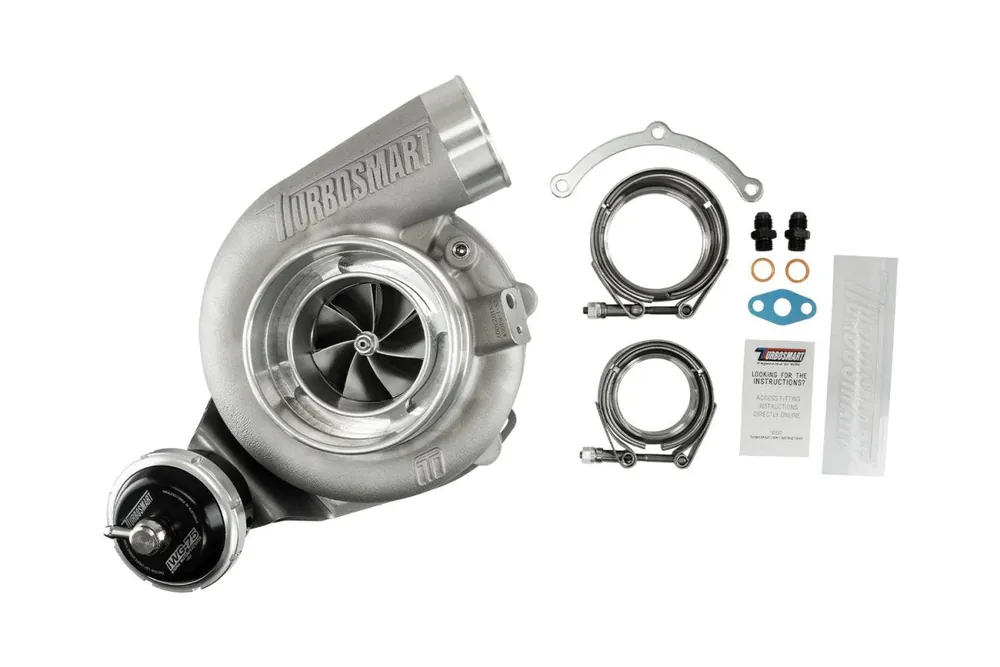

Included:

• (1) Turbosmart Performance Turbocharger
• (2) Weld Flanges (Turbine Inlet and Outlet)
• (2) V-Band Clamps (Turbine Inlet and Outlet)
• (1) Oil drain gasket
• (1) Water Line Fitting Kit
