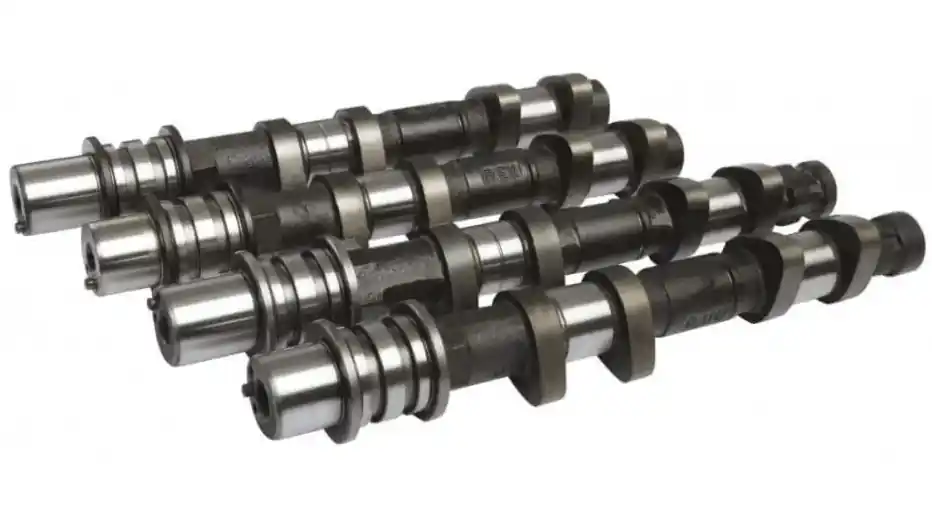

Trusted Brand Kelford Cams 264/260 Camshaft Set 2002-2005 WRX Non AVCS

Description

Manufactured in-house using an ultra modern design system and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency. The Kelford 199-J Rally and Race camshafts suit the 2002-05 2.0L Turbo engines that do not have AVCS. These cams feature a 264 / 260 Duration, 10.70mm / 10.20mm Lift.
Specifications:

• Cam Lift: Intake = 10.90mm , Exhaust = 10.45mm
• Rocker Ratio: Intake = 1 , Exhaust 1
• Net Valve Lift: Intake = 10.70mm , Exhaust = 10.20mm
• Advertised Duration @ .25mm: Intake = 264 , Exhaust = 260
• Duration @ 1.0mm Valve Lift: Intake = 225 , Exhaust = 222
• Timing @ 1.0mm Valve Lift: IVO = 2.5 BTDC , EVO = 44 BBDC , IVC = 42.5 ABDC ,
• EVC = 2 BTDC
• Suggested Centerline: Intake = 110 ATDC, Exhaust =113 BTDC
• Valve Lift @ TDC: Intake = 1.28mm , Exhaust = .83

Note:

• Recommended for use with valve spring upgrade KVS1847-BT
• Must have shimless buckets and aftermarket ECU.
