Torque Solution V2 Alternator Relocation Bracket Kit For Use w/ Reversed Intake Manifolds 2002-2014 WRX / 2004-2021 STI / 2004-2013 Forester XT / 2005-2009 Legacy GT Same Day Shipping

Description

Torque Solution V2Reversed Intake Manifold Alternator Relocation Bracket allows you to relocate the alternator to allow proper clearance and pipe routing when reversing the intake manifold on your EJ20 or EJ25. This bracket is made from 6061 Billet Aluminum and then clear anodized to help against any corrosion. The kit adds a new alternator belt and idler pulley to complete the install.

Features:

• 6061 Billet Aluminum
• Black Anodized
• Zinc Install Hardware Included

• OEM Quality NTN Idler Pulley
• Includes New Alternator Belt
• Limited Lifetime Warranty

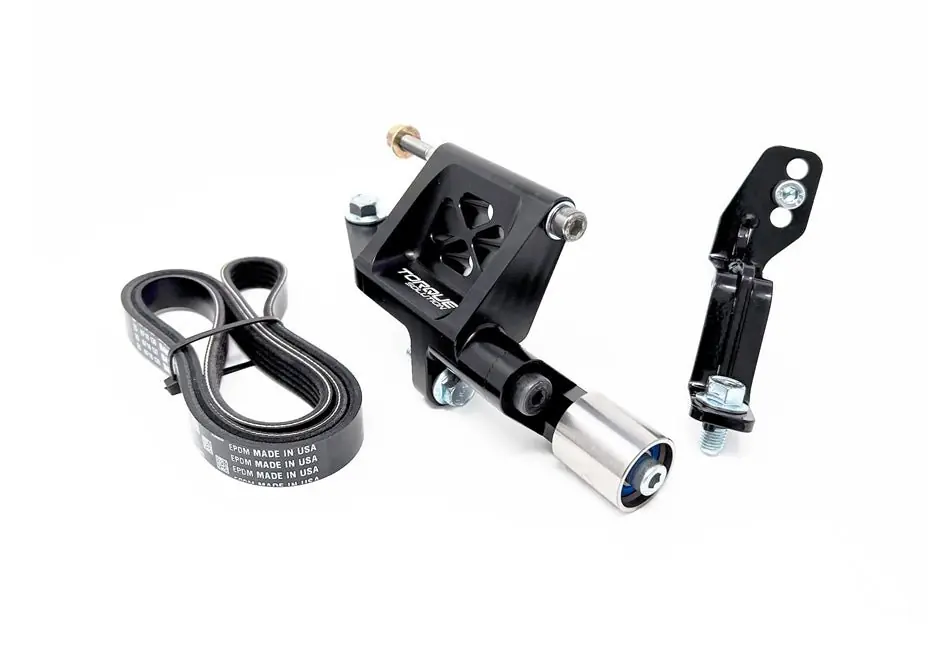

Includes:

• Billet Aluminum Bracket w/ Adjuster Arm (1)
• Powder Coated Steel Bracket (1)
• Accessory Belt 5PK1120 (fits Alternator w/ Power Steering Retained)
• NEP31-003B-4G1 NTN Idler Pulley (1)
• M8-1.25 x 50 Grade 12.9 Zinc Socket Cap (1)
• M8-1.25 x 120 Grade 12.9 Zinc Socket Cap (1)
• M8 Flat Washer (1)
• M8-1.25 x 20 Grade 12.9 Zinc Socket Cap (1)
• M8-1.25 Nyloc Flange Nut (1)
• M10-1.25 x 20 Grade 10.9 Zinc Flange Bolt (1)
• M10-1.25 x 30 Grade 10.9 Zinc Flange Bolt (2)

Notes:

• Modification to OEM alternator bracket is required
• Removal of A/C is required
• Custom turbo piping is required.
• EJ20 engines require a modification to the dipstick mounting to allow clearance, EJ25 engines require no modification.

• If you wish to use this kit without power steering as well, then you would need to source belt part # 5PK770.
