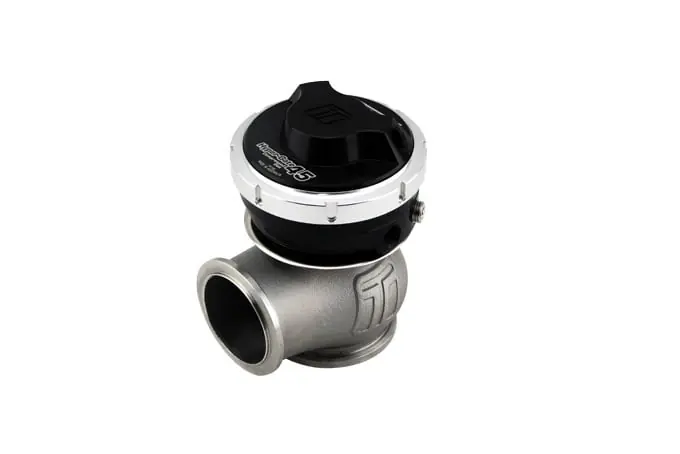

New Release Turbosmart GenV HyperGate45CG 45mm High Pressure Compressed Gas External Wastegate 26psi Black

Description

The GenV HyperGate45 Compressed Gas external wastegate is a cost-effective, high performing 45mm external wastegate designed for control strategies that actively bias the top chamber with increased pressure for large boost bandwidth operation, such as CO2 drag racing or compressed air applications. The Compressed Gas / C02 external wastegate range features an inverted diaphragm suitable for high-pressure CO2 or compressed air systems and large pressure differentials.

The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features:

• Base Spring Options of 3 -26 PSI
• Class Leading, Thermal Performance
• Class Leading, CFD, and Validated Flow Performance
• Class Leading Fatigue Resistance
• Nitronic 60 Valve Guide and High Temp 347 SS Body
• 17/7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps
• User Adjustable Actuator Position
• Modular Design for Actuator Interchangeability

Included:

• All Springs Included
• 3.5.7.14psi (1 Inst. As per Description)
• Locking Collar Tool
• GenV SS316 Valve seat
• Strap Type V-Bands
• Inlet and Outlet Weld Flanges
• Hose Tail and Blank Fitting Kit
• Turbosmart Decal

Installation Instructions
