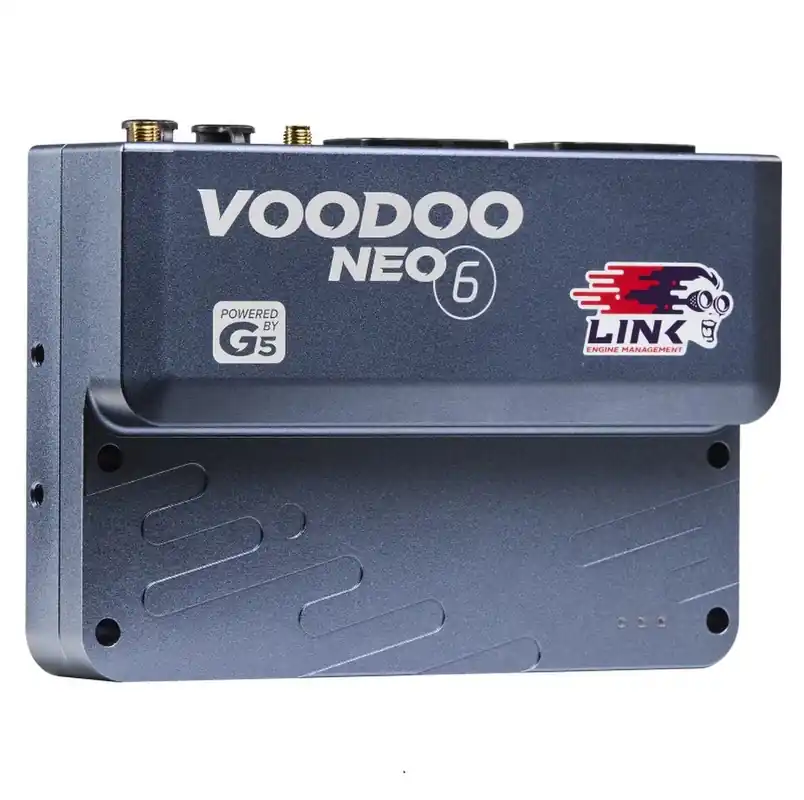

Markdown Link ECU G5 Voodoo Neo 6

Description

The G5 Voodoo processing units are the perfect choice for professional level motorsport.

The G5 Voodoo Neo 6 can run:

• 8 cylinders port or direct injection and direct spark
• 6 cylinders with direct/port staged injection, and direct spark

Features:

• Built in ethernet, WiFi, and GPS
• 1 Onboard Wideband
• WEIPU CAN Connector, which supplies power to CAN-bus
• Highly customisable IO, using 2 types of multi purpose pins:
  ADIO pins and Aux./Digital-Input pins. These pins can act as inputs or outputs.
• Ability to power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
• Runs on the same highly acclaimed PC Link software as G4X
• More mounting options than ever, with through holes and threaded mount holes on the side and underneath.

Included:

• G5 Voodoo Neo 4 ECU
• USB-C Connection Cable
• WiFi Antenna
• 4m GPS Antenna (Magnetic or Adhesive Mount)
• USB-C and SMA Dust Covers
• QuickStart Guide (A5)
• Installer I/O Table (A3)
• Link Stickers

G5 Voodoo Neo Knowledge Base

Quick Start Guide

Installer I/O Table
