Link PlugIn ECU MX5Link – MX5NB1X1998-2000 Mazda Miata MX5 Pre-Facelift w/ 1.8L non-VVT 1.8L Engine New Arrival

Description

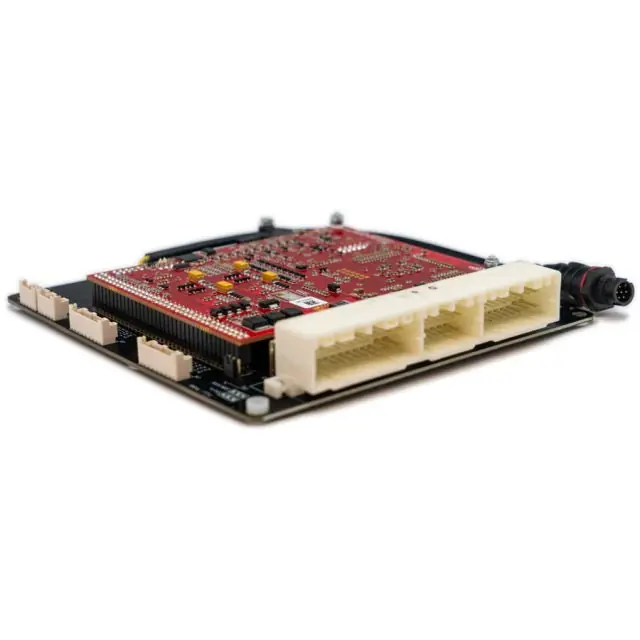

Designed for the Pre-Facelift MX5 NB (MY1998-2000, 3 Plug ECU, non-VVT 1.8L Engine)

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• Includes onboard 7 bar MAP sensor
• Most factory features are supported
• Check the features tab for I/O expansion options

Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

G4X PlugIn Key Features (where applicable):

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features – antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune – automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 mega bytes data logging memory
• Staged injection
• Knock with “windowing”

I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion Connector 1

• Pin 1An Temp 4
• Pin 2An Temp 3
• Pin 3DI 10
• Pin 4DI 9
• Pin 5DI 8
• Pin 6DI 7
• Pin 7IGN 4
• Pin 8IGN 3

E-Throttle Connector

• Pin 1Ground (signal)
• Pin 2+5V out
• Pin 3An Volt 12
• Pin 4An Volt 11
• Pin 5An Volt 10
• Pin 6An Volt 9
• Pin 7Aux 10
• Pin 8Aux 9

Installation Manual

G4X Plug-In ECU Specifications
