Last Chance Link PlugIn ECU GTTLink “NGTTX” 1998-2002 Nissan Skyline / 1997-2002 Nissan Laurel / Nissan Stagea

Description

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below

Suitable applications with the grey plug RB engine:

• R34 Skylines: RB20DE NEO, RB25DE NEO and RB25DET NEO engines
• C35 Laurels: RB20DE NEO, RB25DE NEO and RB25DET NEO engines
• Nissan Stagea: RB20DE NEO, RB25DE NEO and RB25DET NEO engines
• Plus, non neo motors in Stageas

Notes:

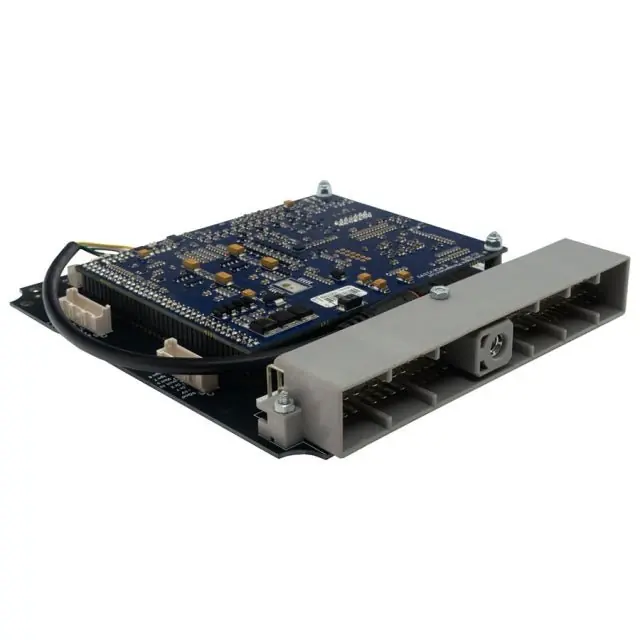

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• Most factory features are supported.
• Note: This ECU does not currently output the 4WD signal required for proper 4wd operation in 4WD Stageas and Skylines.
• Note: Models fitted with factory traction control – TCS will no longer function, the TCS and slip lamps will be illuminated.
• Check the features tab for I/O expansion options.
• This ECU will need a modification before E-Throttle is usable.

Features:

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features – antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune – automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 mega bytes data logging memory
• Staged injection
• Knock with “windowing”

I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion connector 1
SGndSensor Ground Only
+5V OutLow Current +5V Supply
DI 7Digital Input
DI 8Digital Input
An Volt 10Analog 0-5V input
An Volt 9Analog 0-5V input
Ign 7Ignition 7 Auxiliary Output
Ign 8Ignition 8 Auxiliary Output
Expansion connector 2
SGndSensor Ground Only
+5V OutLow Current +5V Supply
DI 5Digital Input
DI 6Digital Input
An Volt 5Analog 0-5V input
An Volt 6Analog 0-5V input
An Temp 2Temperature sensor input
An Temp 3Temperature sensor input
Pin 108 – OBD1 wire now used for IAT on Temp 4.
