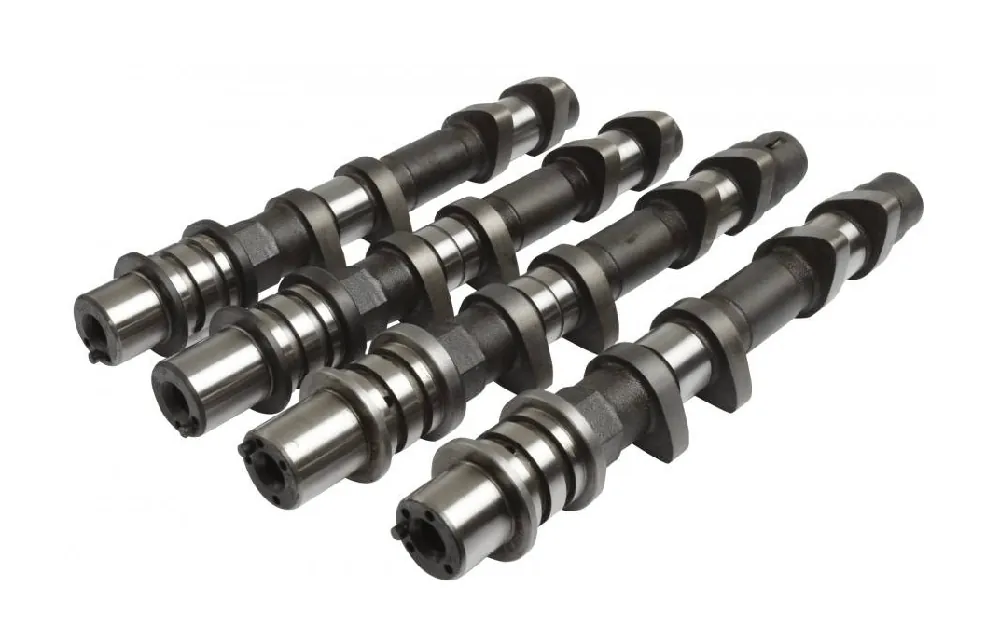

Kelford Cams 292/294 Camshaft Set 2004-2007 STI / 2006-2014 WRX / 2005-2012 Legacy GT / 2004-2013 Forester XT Fresh Stock

Description

Kelford Cams R-199-E cams are designed for all Subaru 2.5L Single AVCS EJ25 engines running high boost, high rpm. The cams feature 292 / 294 duration, 11.20mm / 11.25mm Lift. The racing camshafts are well suited for competition engines using ported heads with +1mm valves, 67mm+ turbo, E85 or methanol. Must be run with fixed cam timing, AVCS delete.

Specifications:

• Cam Lift: Intake = 11.20mm , Exhaust = 11.25mm
• Net Valve Lift: Intake = 11.00mm , 11.00mm
• Advertised Duration @ .25mm: Intake = 292, Exhaust = 294
• Duration @ 1.0mm Valve Lift: Inlet = 250 , Exhaust = 252
• Timing @ 1.0mm Valve Lift: IVO = 13 ATDC , EVO = 64 BBDC, IVC = 57 ABDC, EVC = 8 ATDC
• Suggested Center line – Intake = 112 ATDC , Exhaust = 118 BTDC
• Valve Lift @ TDC: Intake = 2.42mm , Exhaust = 1.85mm

Notes:

• Due to the cam profiles, head clearancing will need to be done for installation.
• Kelford Cams recommend valve spring upgrade KVS1847-BT
• Must be run with fixed cam timing, AVCS delete.
