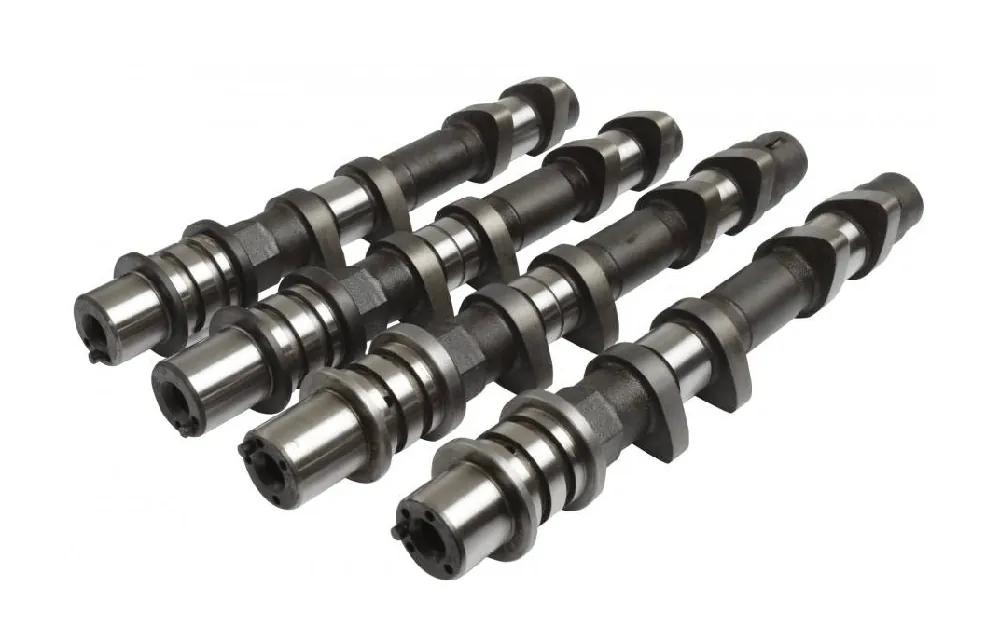

Kelford Cams 264/260 Camshaft Set 2004-2007 STI / 2006-2014 WRX / 2005-2012 Legacy GT / 2004-2013 Forester XT Affordable

Description

Kelford Cams R-199-B camshaft set is designed for all Subaru 2.5L Single AVCS EJ25 engines.

The cams feature a 264 / 260 Duration, 10.70mm / 10.20mm Lift and are designed for use on the street, strip or for circuit racing. The camshafts are ideal for engines in the 300-500hp range. Suits up to 30lb boost and 8000 RPM with upgraded valve springs.
Specifications:

• Cam Lift: Intake = 10.90mm, Exhaust = 10.45mm
• Rocker Ratio: Intake = 1, Exhaust = 1
• Net Valve Lift: Intake = 10.70mm , Exhaust = 10.20mm
• Advertised Duration @ .250: Intake = 264 , Exhaust = 260
• Duration @ 1.0mm Valve Lift: Intake = 225 , Exhaust = 222
• Timing @ 1.0mm Valve Lift: IVO = 17.5 ATDC , EVO = 44 BBDC, IVC = 62.5 ABDC, EVC = 2 BTDC
• Suggested Center line: Intake = 130 ATDC, Exhaust = 113 BTDC
• Valve Lift @ TDC: Intake = .03mm , Exhaust = .83mm
