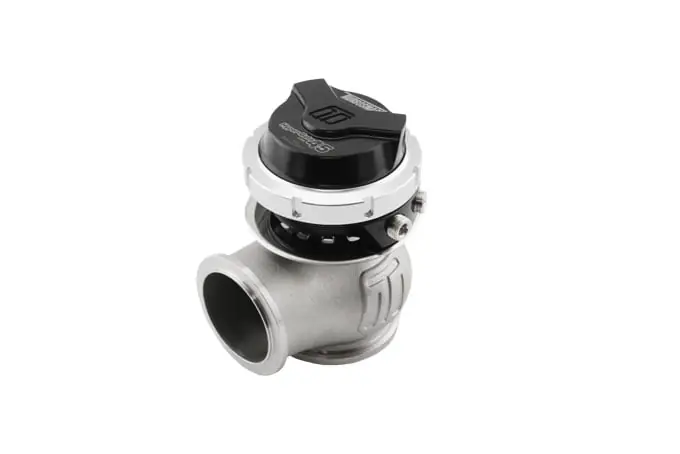

Holiday Sale Turbosmart GenV Hypergate45-Lite 14psi External Wastegate Black

Description

The GenV HyperGate45 Lite external wastegate is a cost-effective, high-performing 45mm external wastegate with a compact actuator in engine bays with limited space. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs

Features:

• Low Profile (Reduced height and Diameter) Actuator Housing
• Class Leading Thermal Performance
• Class Leading CFD Driven and Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Liquid Cooling
• Optional Position Sensor Available Separately
• Rotatable / Clockable Actuator Housing
• 45mm V-Band Fitment
• Nitronic 60 Valve Guide and High Temp 347 SS Body
• 17-7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps

Included:

• GenV Wastegate Unit
• All Spring Included in Box
• Wastegare Pre-fitted as per the description
• GenV SS316 Valve Seat
• Inlet and Outlet Weld Flanges
• Inlet and Outlet V-Bands
• Locking Collar Tool
• 4 x 1/8 NPT plugs
• 2 x 1/8 NPT Hose Tail Fittings
• Turbosmart Decal

Installation Instructions
