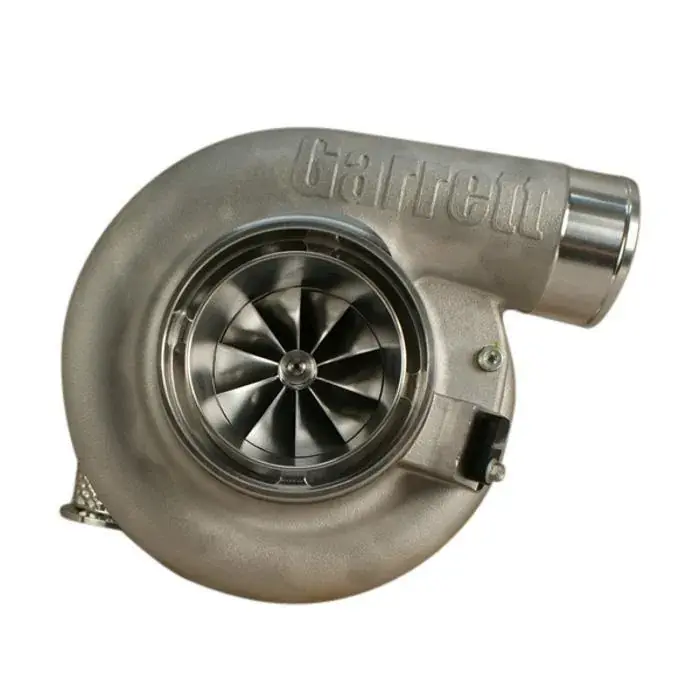

GCG Turbos G40-1150 Supercore Garrett 0.80a/r 71mm/88mm 77mm/70mm 84T Crafted

Description

Garrett® G Series 40 turbochargers offer enthusiasts a new range of quick spooling, high horsepower solutions for 2.0 liter up to 6.0 liter engine platforms, in a compact frame size

G Series G40 is available in 2 compressor inducer sizes. G40-900 (62mm) and G40-1150 (71mm) both G40 models are interchangeable meaning they are the same size and can be swapped out without having to reconfigure any other turbo kit parts.

G40 turbine housing kits are available in four A/R. 0.85 A/R | 0.95 A/R | 1.06 A/R | 1.19 A/R stainless steel housings with T4 divided inlet flange. The largest 1.19 A/R T4 turbine housing flows 43 LBS/MIN of air which is a 16% increase over the GTX4088R turbine wheel.
