Free Returns Air Lift Performance ALP4 Management System For Use w/ 3/8″ Air Line

Description

The ALP4 Air Management System sets a new standard for air suspension control, blending advanced hardware with intelligent, user-friendly functionality. At its core is a compact, all-in-one manifold—housing the ECU, solenoids, and pressure sensors—precision-machined from anodized black billet aluminum for long-lasting durability and a premium, show-quality finish.

Control is effortless with the full-color touchscreen controller, framed in matching anodized aluminum and complemented by four tactile buttons for quick access to presets, manual 4-corner control, axle adjustments, full air-out, and more. For added versatility, ALP4 includes mobile app integration, letting you monitor and fine-tune your system from virtually anywhere.

Features:

• Pressure-based air management system with all-in-one manifold with ECU, solenoids, and pressure sensors built in for cleaner installs and fewer fail points
• Upgradable to a height-based air management system by incorporating Airlifts Height Upgrade Kit
• Threaded 1/4” FNPT manifold ports compatible with included PTC fittings or any 1/4″ male-threaded fittings
• 5-inch full-color touchscreen controller with anodized aluminum case, 4 physical buttons, and auto-dimming ambient light sensor
• Adjustable LED colors for manifold cover, controller backlight, and buttons
• Plug-and-play harness for easy install, only needing power, ground, and keyed ignition; drop-in upgrade for existing 3P/3H setups
• Free mobile app with improved connectivity and a user-friendly interface for full system control
• Built-in diagnostics with clear, easy-to-understand system messages
• Compressor performance test and diagnostics to track and benchmark compressor health
• Adjustable pulse rate for fine-tuning system responsiveness
• Valet Mode with customizable lockout settings
• Improved ride adjustment algorithms with learning and road filtering
• Show Mode: Allows full use of the system with the vehicle off for one ignition cycle
• Standby mode: Allows wireless connectivity and use of the system with the vehicle off for an adjustable period of time, with the controller, LED lighting, and compressor disabled for minimum power draw
• Adjustable preset maintain sensitivity (high, medium, low)
• Slow Lift/Lower Zone for pulsed movement near minimum ride height to manage ground contact smoothly
• Seamless integration of an available tank and compressor kit (tank and compressor not included)

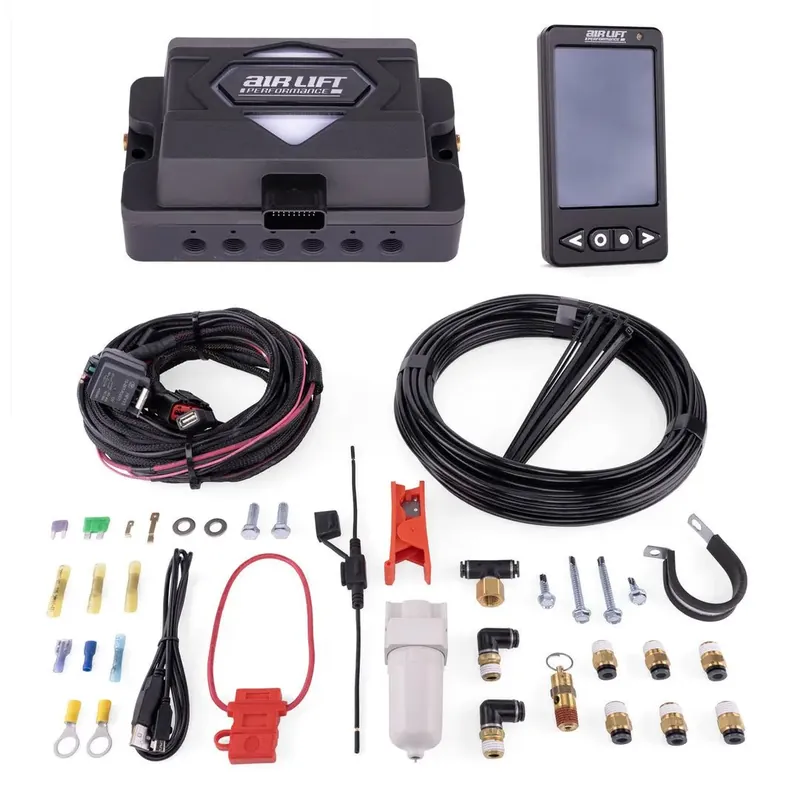

Includes:

• Threaded port (1/4” FNPT) manifold
• Touch screen full-color LCD controller with physical buttons
• Main wiring harness
• USB-A to USB-C cable for controller-to-harness connection
• Manifold mounting hardware
• Electrical hardware
• (6) 1/4” MNPT x 3/8” PTC fittings
• (1) SMC water-trap with manual drain and mounting strap
• (1) Air line cutter
• (60) 3/8” DOT air line
