Deal CMS Performance Bolt In Roll Bar 2013-2020 BRZ / 2013-2016 FRS / 2017-2020 GT86

Description

Engineered with a premium placed on safety and structural rigidity, the exceptional design from CMS Performance integrates perfectly with the car’s sporty interior. Made entirely from Docol R8 Advanced High-Strength Steel, it offers unmatched tensile strength, impact absorption, and protection—15% stronger than 4130 CrMo and 30% stronger than DOM steel.

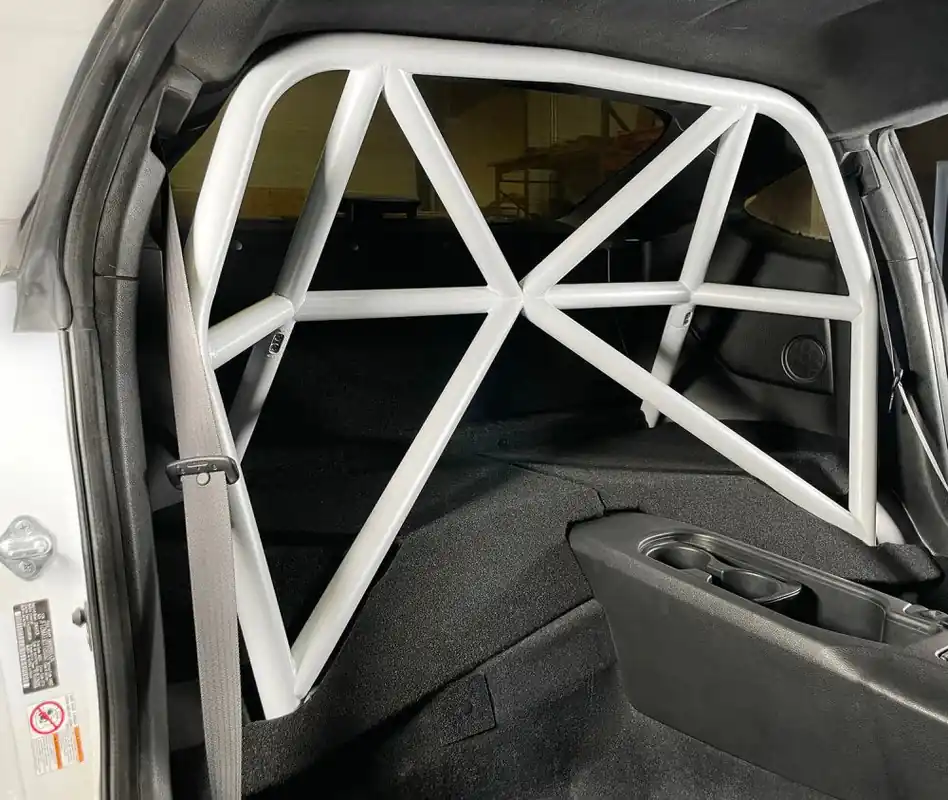

The one-piece main hoop with X-bracing and harness bar bolts directly to the chassis, forming the backbone of the roll bar. Rearward kickers are optimized for rollover support while preserving rear visibility. The main hoop cross bar positions harness straps at the correct angle regardless of seat position.

It bolts directly to chassis strong points—no major mods or backing plates required. Full 360° TIG welding ensures maximum strength and durability.

Each roll bar includes custom powder coating in color-matched factory offerings. CMS also offers a custom Shrader rear seat delete kit, specially modified to fit the roll bar for a clean, factory-style install.

Features:

• Materials: 1.75″ X .095″ Docol R8 Advanced High Strength Steel
• Features: One-piece main hoop for superior strength and occupant safety; proprietary kicker design eases installation while maintaining exceptional strength
• CNC-cut mounting plates
• CNC machined high-strength-steel interlocking joints
• Allows full seat travel with virtually any seat
• All USA-made Grade 8 hardware included

Notes:

• Powder coat colors are professionally matched to be as close as possible to factory paint codes. However, color-matching powder is not the same as mixing liquid paint. In a few cases, slight color variance is normal and is not perceptible with the roll bar installed inside the car.
• This product is intended for off-road race track use only.
• Rollbars are built to order and have an average 2 week lead time.
