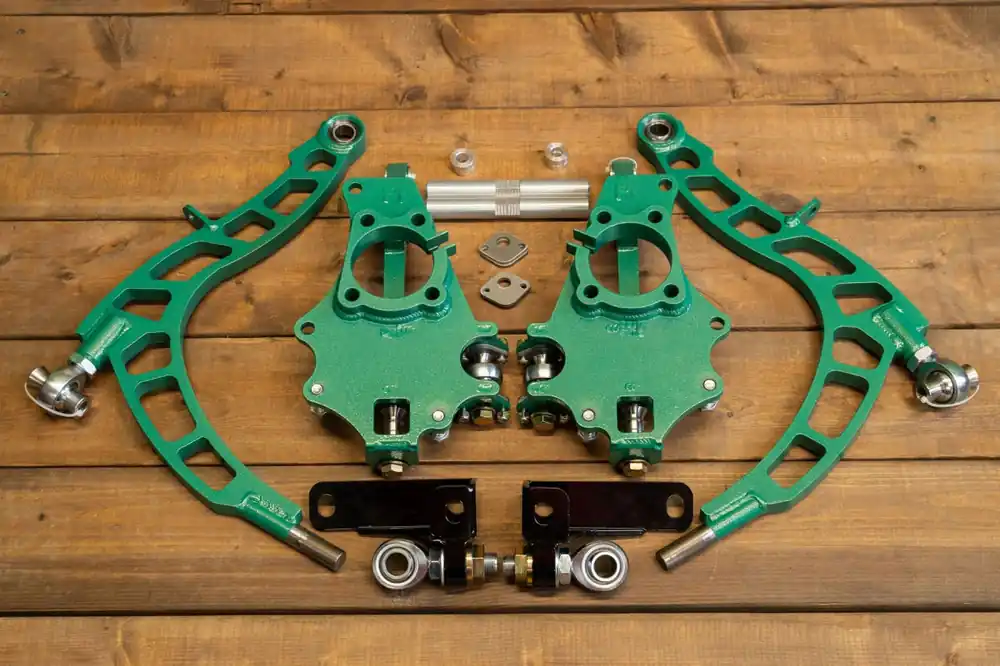

Crafted FDF Mega Mantis Angle Kit For Use w/ 350z 5×114.3 Wheel Bearing 2002-2007 WRX / 2002-2007 Impreza

Description

The Subaru Impreza 2002-2007 Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

• Angle: 65+ degrees depending on your wheel setup and length of control arms
• Tie-rods, Outer tie-rods included, these fasten to the stock inner tie-rods
• Ackermann: Adjustable Ackermann options from Positive – zero – negative
• Roll Center: Optimized handling by adding 50mm of roll center correction.
• Bump steer: Perfected bump steer for drifting.
• Caster: Modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 50-75mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joints: Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Weight Reduction: Made from High strength alloy steel and Aluminum.
• FDF Green powdercoat finish

Wheel Bearing:

• This uses a 350z wheel bearing. you must also run this setup with a 350z rotor and the STI caliper.

Note: Wheel Bearing not included.

FDF: MIni, Mild, Mega – Whats the Difference?
