Certified Shadow Meter D-Meter-2 Multi OBD2 Display Gauge

Description

Experience smarter, faster, and clearer vehicle monitoring with the D-Meter 2 PLUS — a sleek, plug-and-play OBDII digital gauge that delivers real-time performance data with no additional sensors required. Simply connect it to your vehicle’s OBDII port and access up to 11 key metrics, including boost pressure, AFR, coolant temp, voltage, RPM, and more.

Upgraded with a high-speed Microchip CPU, the D-Meter 2 PLUS provides ultra-accurate readings, rapid response, and seamless data delivery to enhance both safety and driving awareness. It also includes built-in DTC read/clear functionality, eliminating the need for a separate diagnostic tool.

Features

• Universal fitment for 12V gasoline, diesel, and mild hybrid vehicles
• Plug-and-play installation via OBDII port
• Displays 11 key parameters (coolant temp, intake temp, boost, voltage, and more)
• High-speed Microchip CPU for fast, accurate data updates
• High-contrast OLED display
• RGB ambient lighting with 7 colors and 5 brightness levels
• Supports 9 customizable alert thresholds with audible/visual warnings
• Built-in DTC read & clear function
• Dual display supported
• Screen orientation flip for flexible mounting
• Auto power on/off with low power consumption
• Power-off memory retains all settings

Design & Display

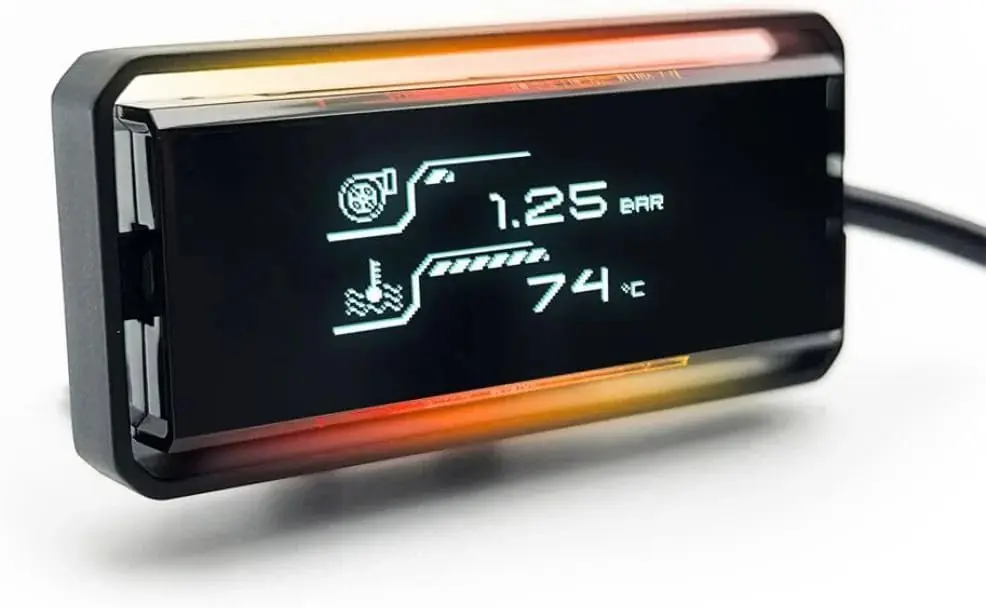

The D-Meter 2 PLUS features a matte black aluminum bezel paired with a synchronized RGB ambient backlight with multiple color modes and adjustable brightness for a clean, customizable aesthetic.

A high-contrast OLED screen ensures excellent visibility—even in direct sunlight—while the updated font and dual-zone layout keep data easy to read in any environment. The hidden button design supports single or dual-display modes, with screen flipping for left- or right-hand drive installation.

Advanced Diagnostics & Alerts

The D-Meter 2 PLUS includes full DTC reading and clearing, providing immediate access to ECU trouble codes for faster troubleshooting. Up to nine user-defined safety alerts can be set for temperature, voltage, and other critical parameters, with automatic memory retention for all configurations.

Compatibility Notes:

• The D-Meter 2 PLUS communicates using the OBDII CAN BUS protocol and requires vehicles that support SAE J1979. Displayed values depend on ECU data availability and may vary by model.
• Oil temp and transmission temp availability depends on factory sensor presence and manufacturer-supported PIDs.
• Boost pressure is supported on most turbocharged vehicles using the universal channel (-1.0 to +1.55 bar), with brand-specific channels available for high-boost or diesel models.
